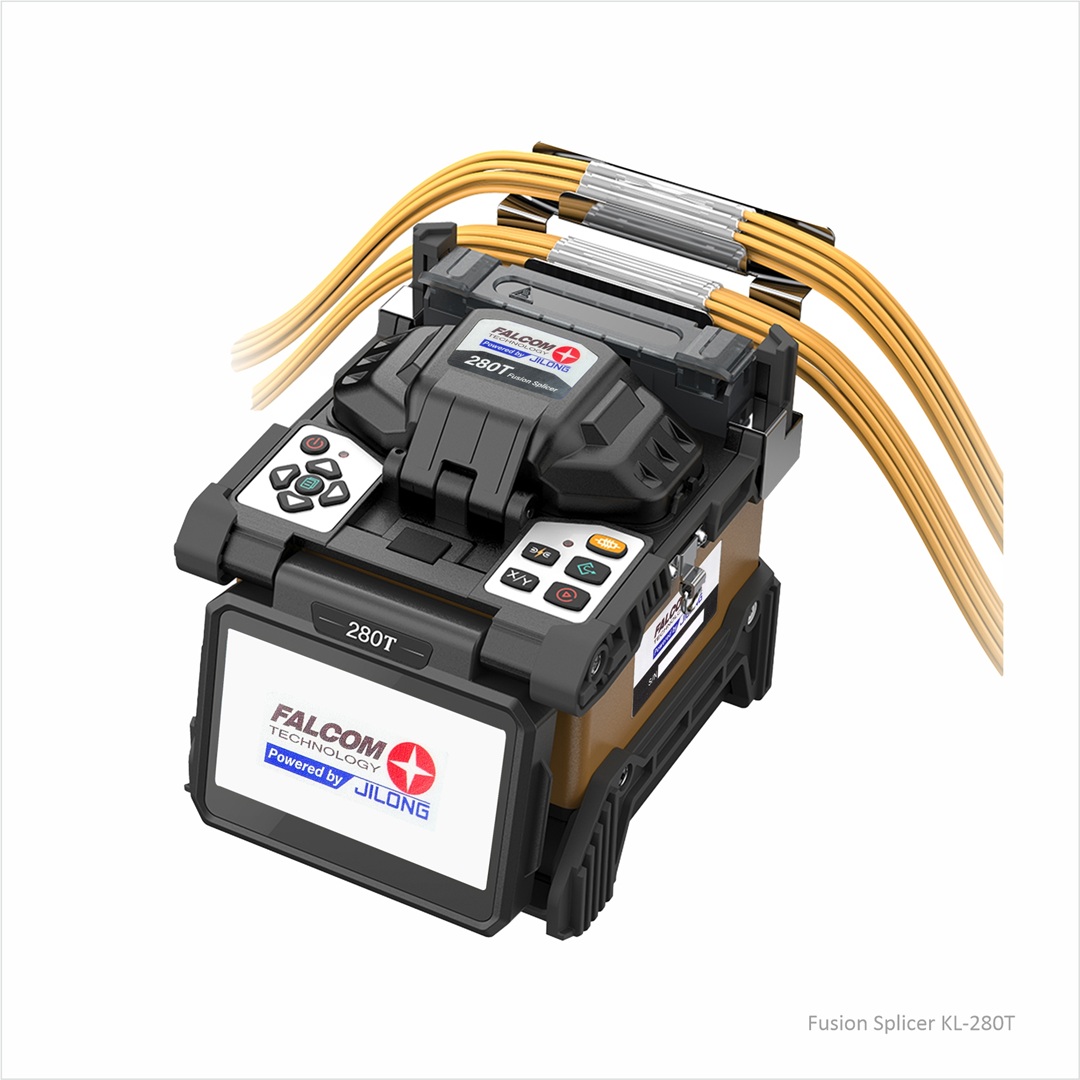

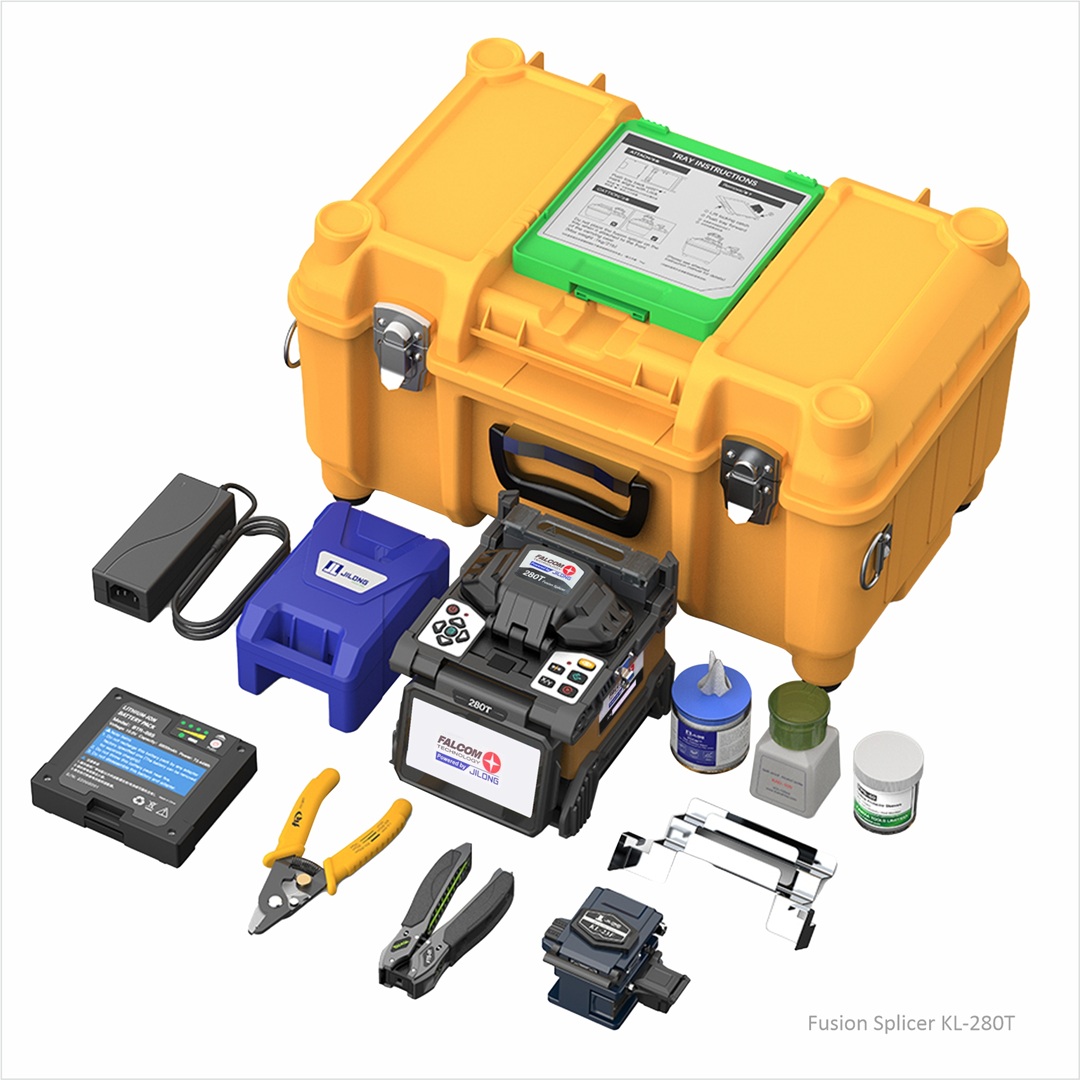

| Alignment method |
Core Alignment |
| Applicable fiber type |
SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Compatible Fiber/Cable |
0.25~3.0 mm / Rubber-insulated fiber cable |
| Fiber Holder |
Replaceable universal fiber holder |
| Fiber Diameter |
Cladding:80-150µm, Coating: 100-1000µm |
| Fiber Cleave Length |
8-16 mm |
| Splicing mode |
Max 128 modes |
| Typical Splice Loss |
SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB ★① |
| Return Loss |
>>60dB |
| Splicing Time |
SM Quick mode: 8 sec/ SM Average: 15 sec |
| Estimated Splice Loss |
Available |
| Heating Time |
Quick mode 18 sec.(SM G652 250µm 40mm Sleeve) adjustable★② |
| Protection Sleeve Length |
20mm, 30mm, 40mm, 50mm, 60mm |
| Heat Programs |
Max 32 modes |

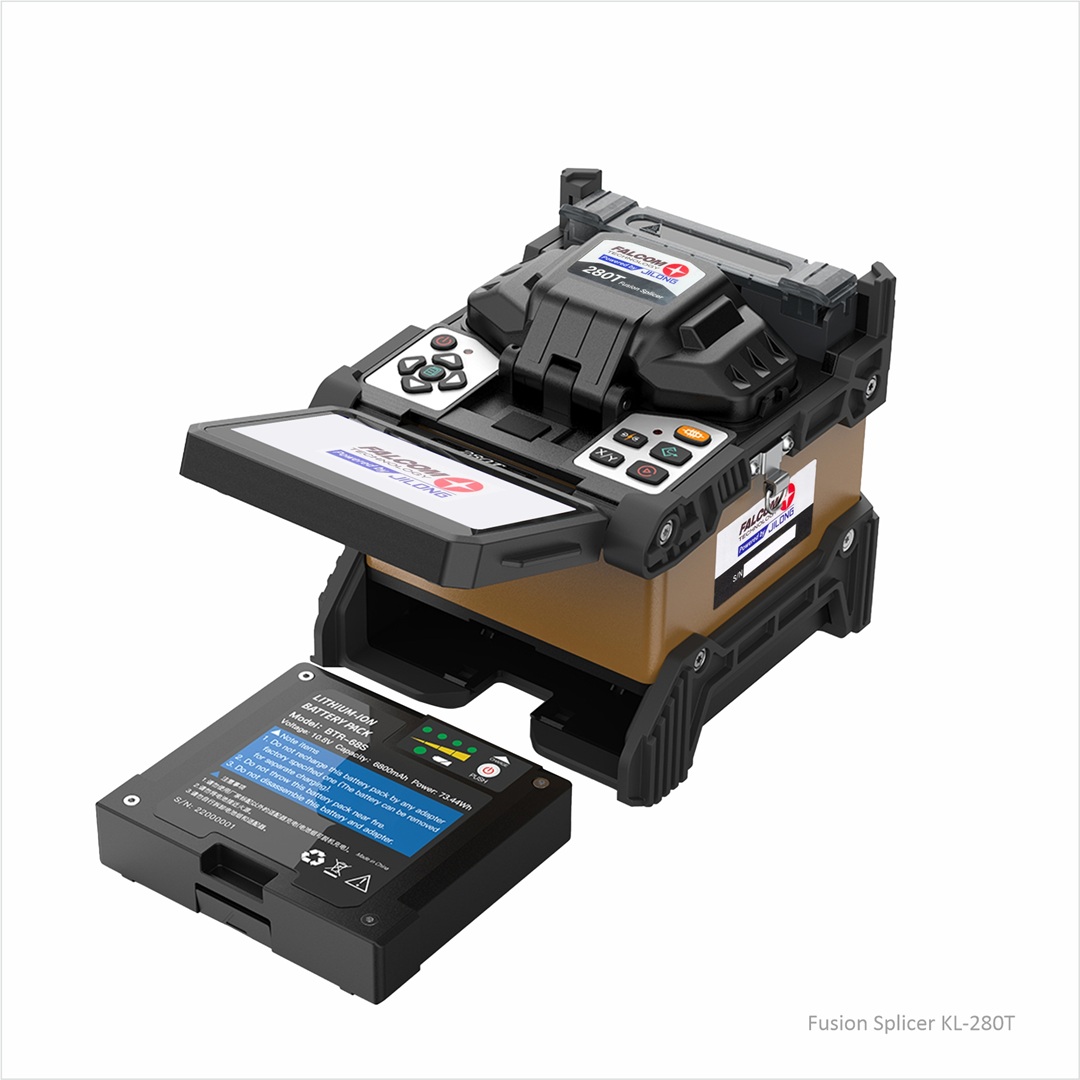

| Battery |
6800mAh Battery Capacity, Typical 300 Cycles (Splice&Heat) per Charge ★③ |
| Electrode Life |
5000 arcs, can be extended by using an electrode grinder ★④ |
| Auto-start |
Splice / Heating |
| Automatic Fiber Identification |
/ |
| Automatic ARC Identification |
Automatic arc calibration by air pressure and temperature |
| Results Storage |
The last 10,000 splice records and 2,000 result images |
| Tension Test |
1.96~2.25N |
| Operating Condition |
Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s |
| Storage Condition |
0~95% relative humidity, -20~60°C |

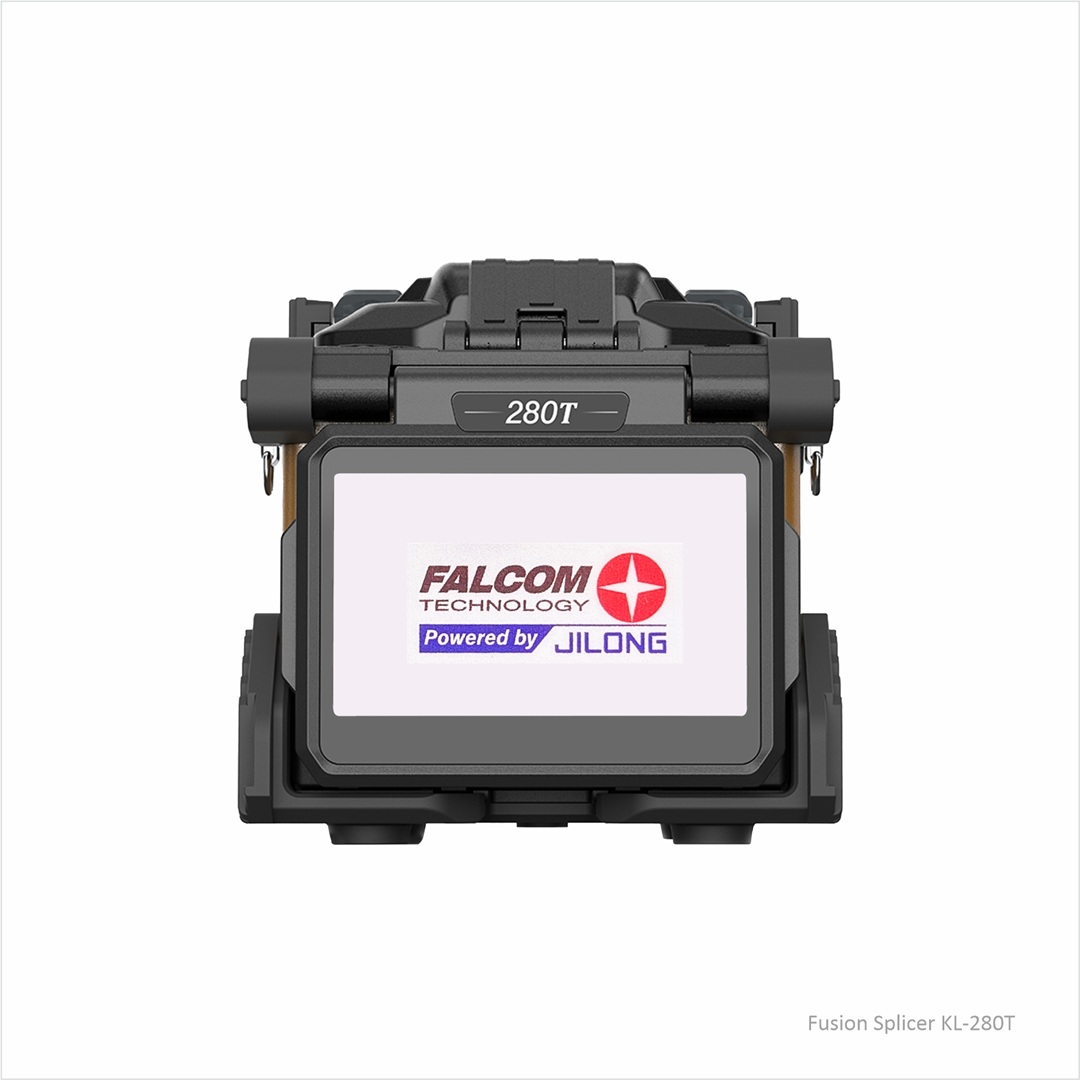

| Display |
4.3-Inch capacitive touch screen |
| Fiber Magnification |
X, Y, XY, X/Y : 320X Magnification |
| Power Supply |
AC Input 100-240V, DC Input 9-14V |
| Terminal |
USB2.0 |
| Weigh |
1.6kg without battery / 1.9kg with battery |
| Size |
143H x 136W x 155D mm (including rubber bumper) |
